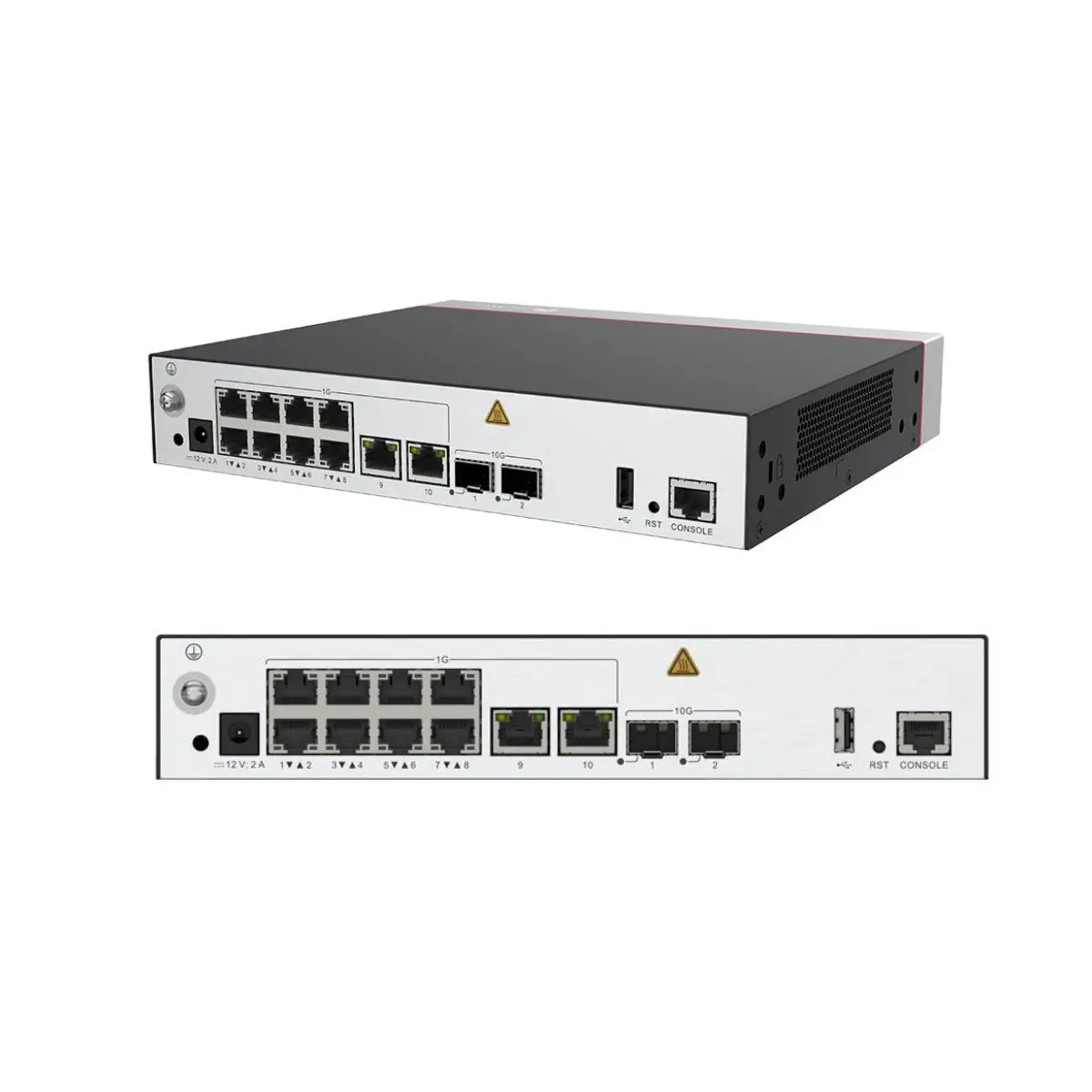

Huawei AC650-256AP Wireless Access Controller
| Specification | Details |
|---|---|
| Product Model | Huawei AC650-256AP |
| Product Category | Wireless Access Controller |
| Part Number (BOM) | 02355NCH |
| Maximum Managed APs | 256 APs |
| Ethernet Ports | 10 × 10/100/1000BASE-T GE Ports |
| Uplink Ports | 2 × 10GE SFP+ Ports |
| Console Port | 1 × RJ45 Console |
| USB Port | 1 × USB 2.0 |
| CPU | 4-Core 1.2 GHz Processor |
| Memory | 2 GB DDR4 |
| Storage | 1 GB NAND Flash |
| Maximum Power Consumption | 23.58 W |
| Power Supply | DC Power Adapter |
| Surge Protection | 6 kV Common Mode |
| Cooling | Fanless Design |
| Installation Options | Rack / Desktop / Wall Mount |
| Dimensions | 43.6 × 250 × 210 mm |
| Weight | 1.9 kg |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 5% to 95% RH (Non-condensing) |
The Huawei AC650-256AP Wireless Access Controller is a high-performance enterprise WLAN controller designed for small to medium business networks requiring centralized wireless management. Built for scalable WiFi deployments, the AC650-256AP can efficiently manage up to 256 access points, making it ideal for offices, hotels, educational institutions, retail environments, warehouses, and commercial facilities. It delivers stable wireless access control, intelligent traffic management, secure user authentication, and simplified network administration through centralized control. Huawei’s advanced WLAN optimization technologies help improve roaming performance, load balancing, and wireless coverage for seamless connectivity across the network.
Key Features
- Centralized management for up to 256 Huawei access points
- Intelligent wireless traffic optimization
- Seamless roaming and AP load balancing
- Secure access control and policy management
- Integrated wired and wireless network access
- High-speed uplink connectivity for enterprise traffic
- Easy deployment for SMB and enterprise environments
- Reliable performance for high-density WiFi networks
Applications
The Huawei AC650-256AP is suitable for:
- Corporate offices
- Retail stores
- Hotels & hospitality
- Educational campuses
- Warehouses
- Commercial buildings
- Multi-branch business WiFi deployments
